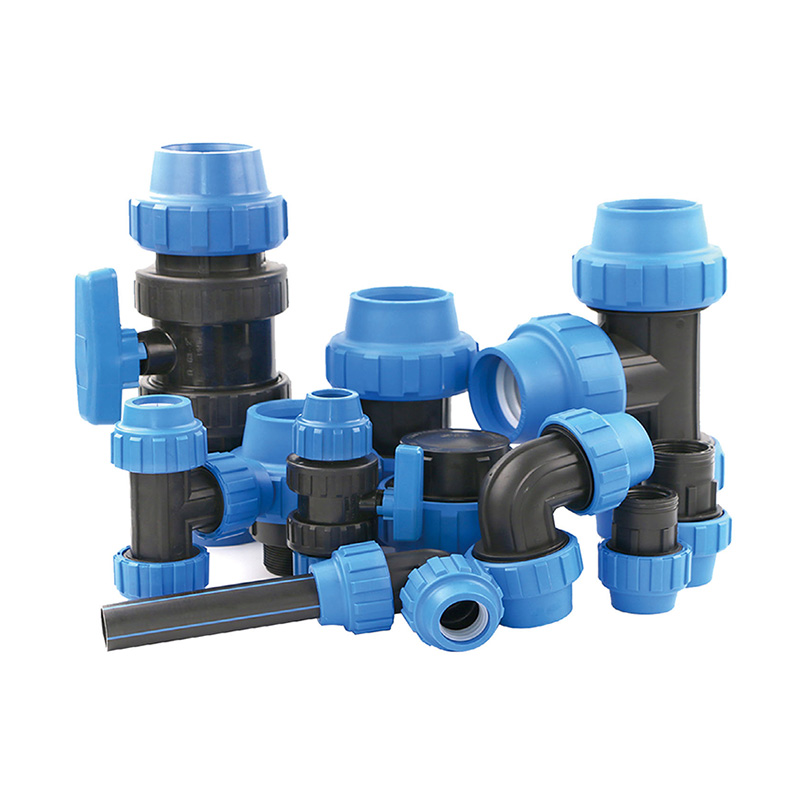

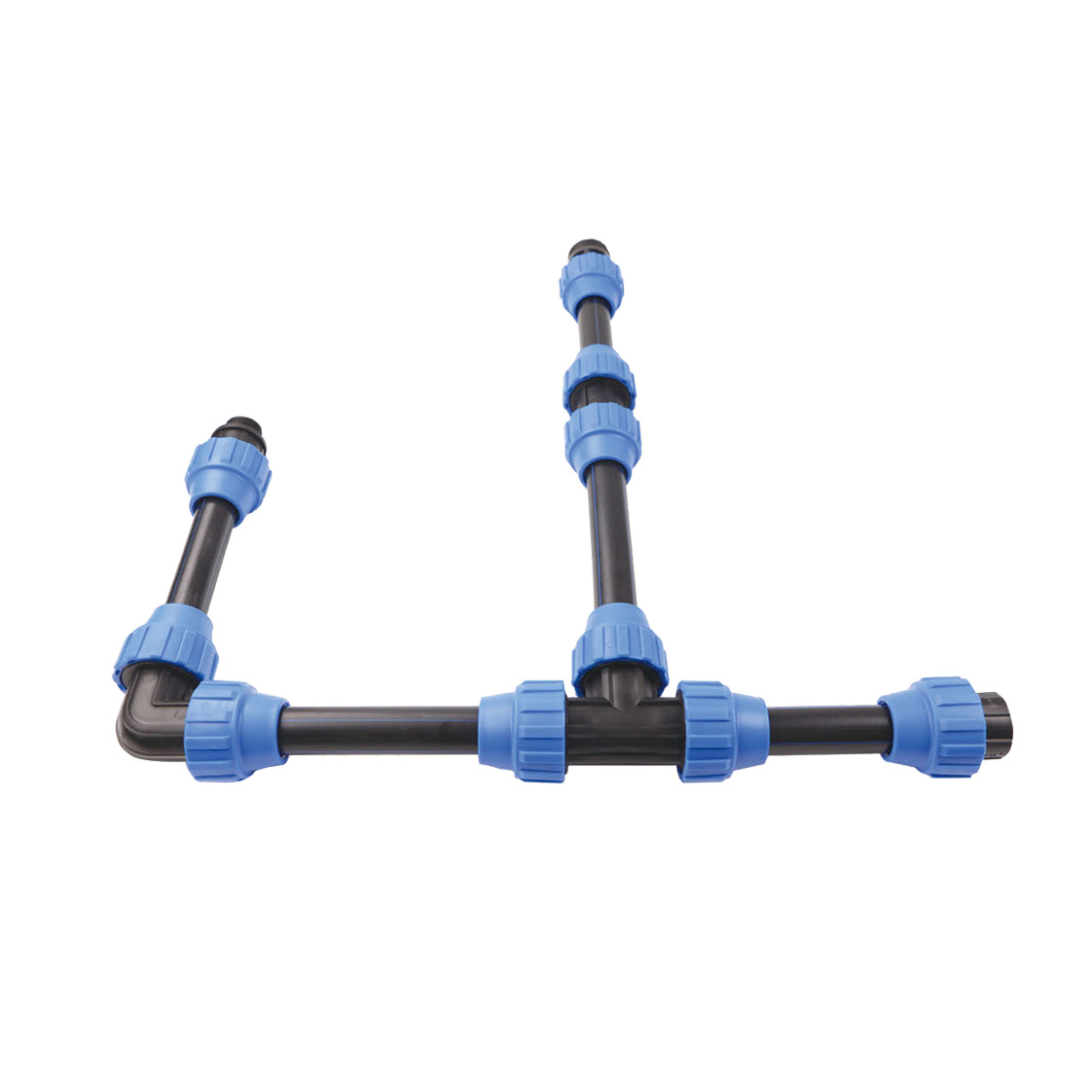

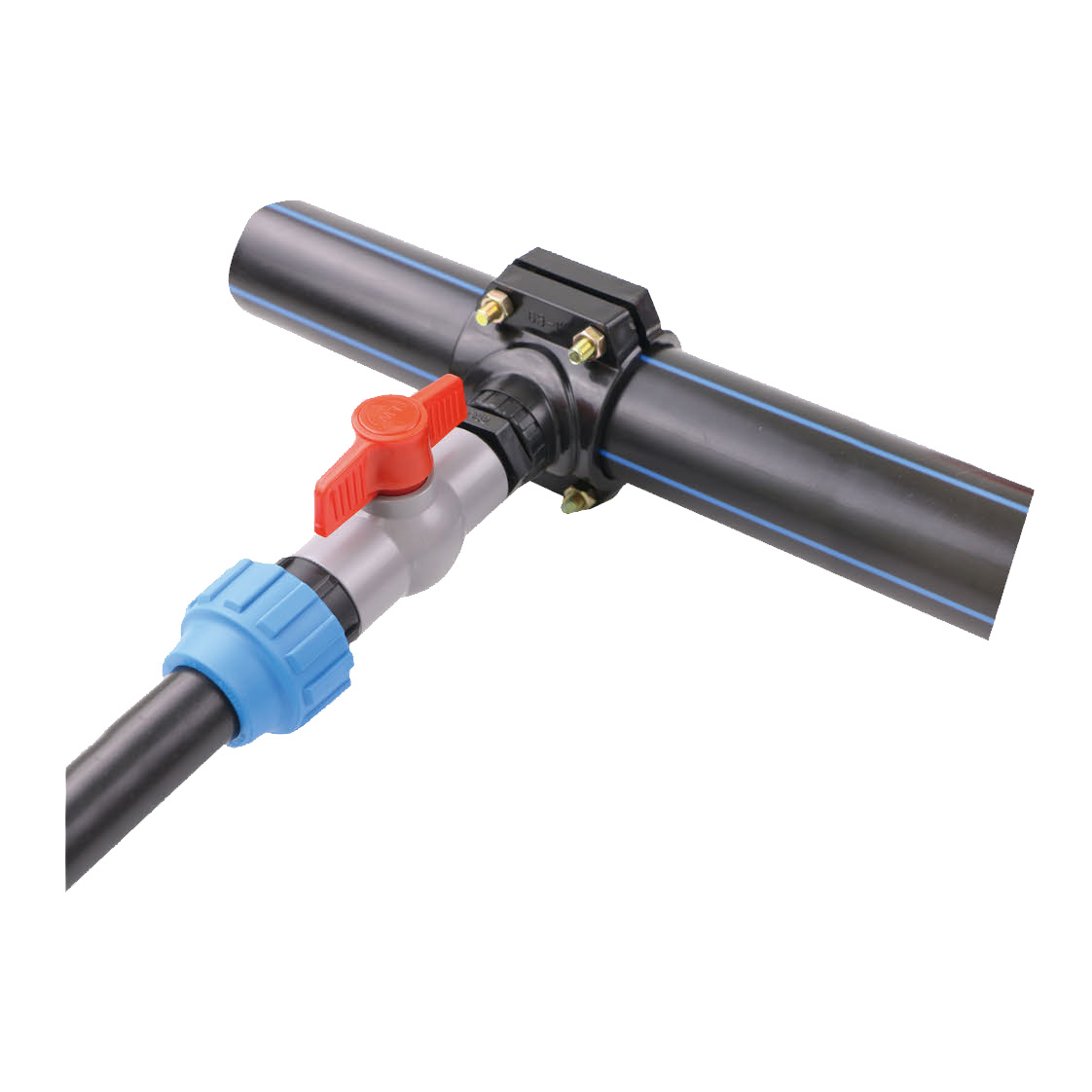

Drip irrigation accessories: compression fittings

PRODUCT PARAMETERS

Reference Standards

Working Pressures
UNI9561-2,DIN 8076,ISO14236,BRL-K03
Polyethylene(PE)Pipes:
UNI7611,UNI7990, DIN9072,
DIN8074,UIN10910,EN12201
Threads:
ISO7,ANSIASME B1-20
Flanges:
ISO2084,DIN2501,UN17442

Description
FAQs
Request A Quote

Description

Technical data

The compression fittings line is crafted to excel in fluid conveyance under high pressure, specifically designed for applications in the water distribution sector. Engineered to meet rigorous international standards for mechanical performance and compatibility.

Working Pressure

Allows the maximum working pressure(PN-PFA) 16 bar(UNI9561-2) for diameters from 20 to 63mm and PN 10 bar for diameters from 75 to 110mm at the temperature of 20 ℃ . Maximum allowable working pressure related to the duration of pressure and temperature.
