Heavy Duty Steel Scaffolding

PRODUCT PARAMETERS

REQUEST A QUOTE

Description

FAQs

Request A Quote

Description

PRODUCT SPECIFICATIONS

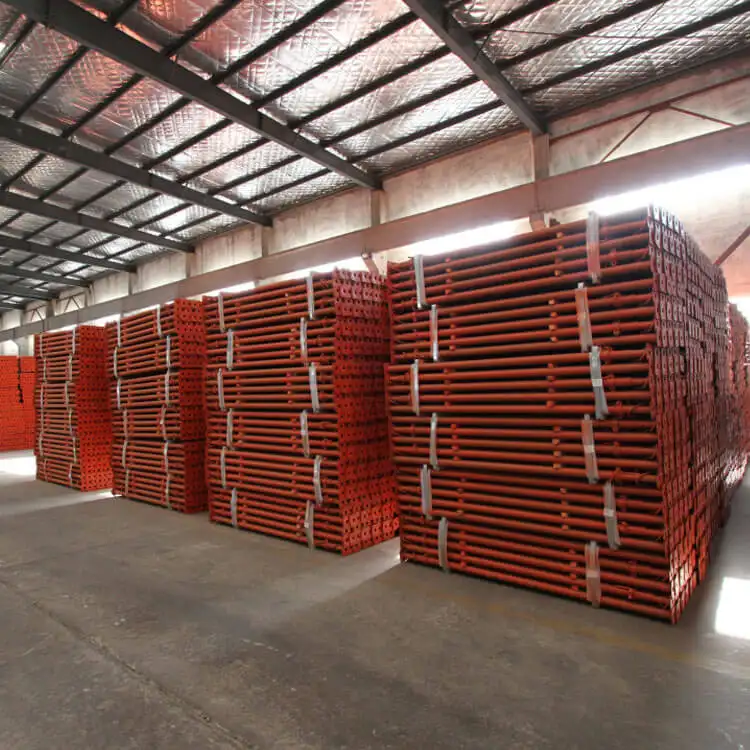

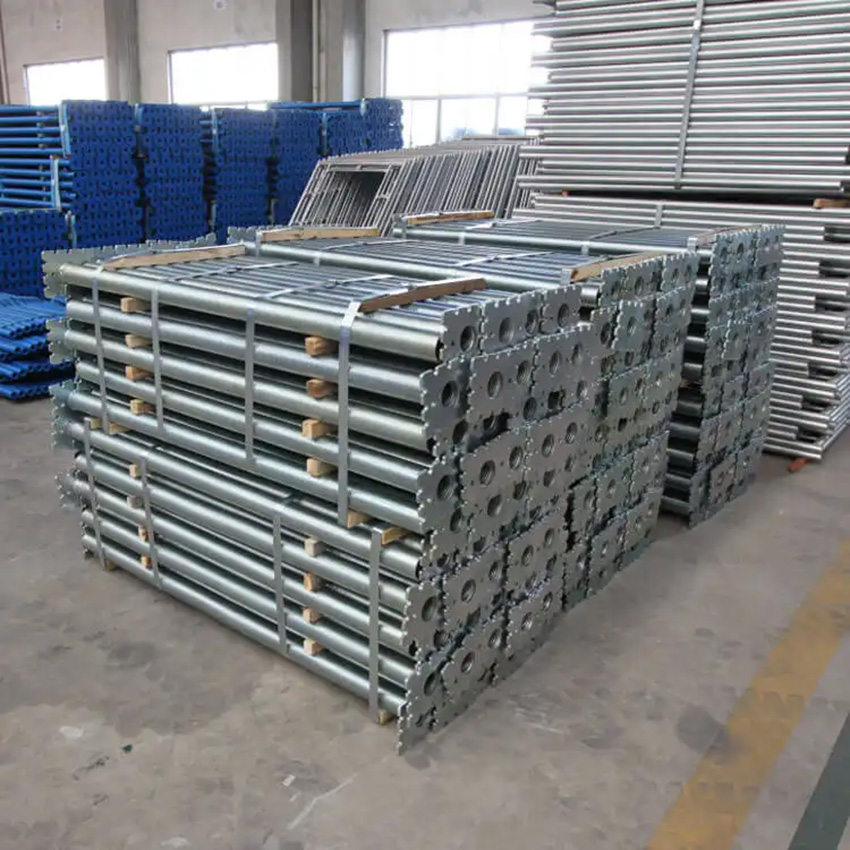

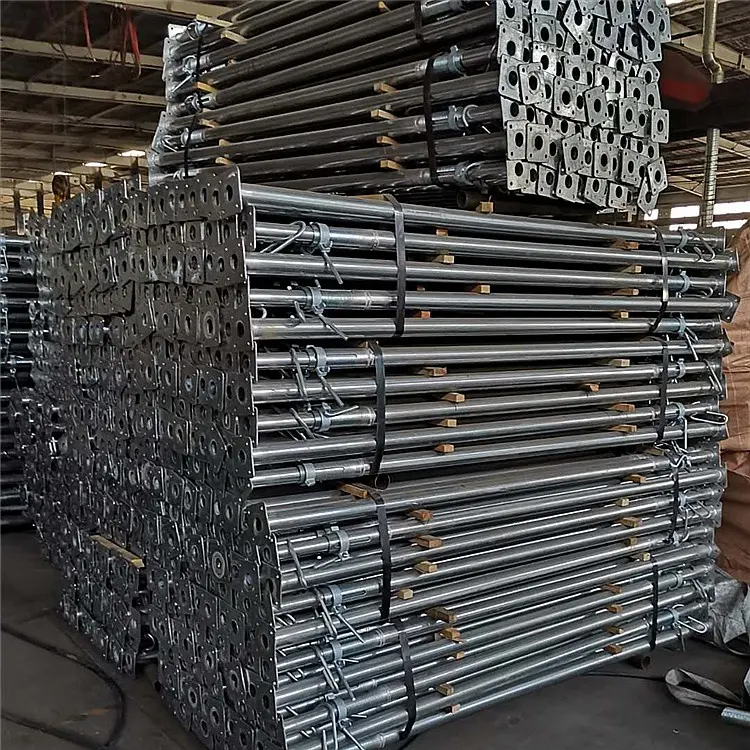

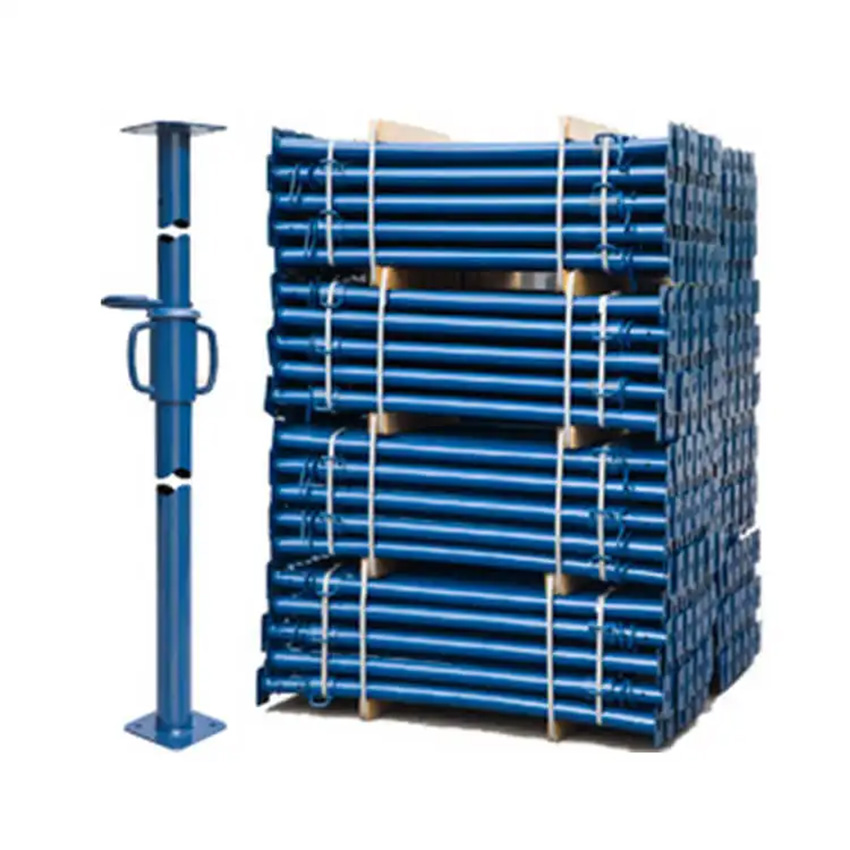

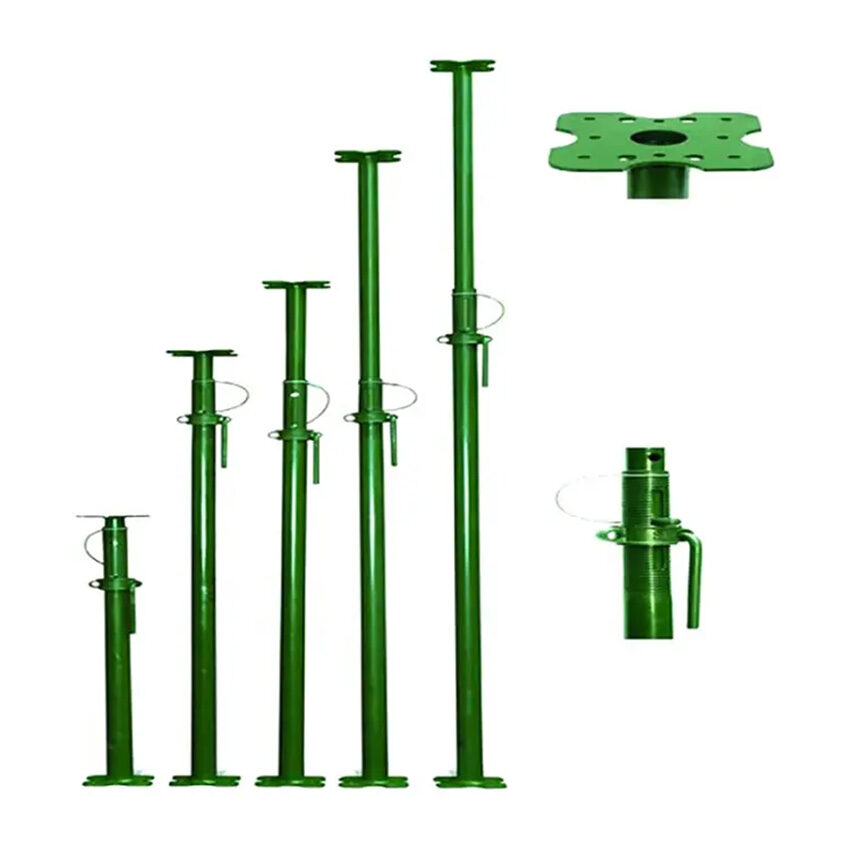

Name	Adjustable Scaffolding Acro Steel Prop
Size	out diameter:48mm 56mm 60mm, inner diameter:40mm,48mm. thickness:1.4-3.5mm.
Length	1.6m – 6m CUSTOMIZED
Surface	color powder coated (red,blue,orange or customize), hot dip galvanized, painted

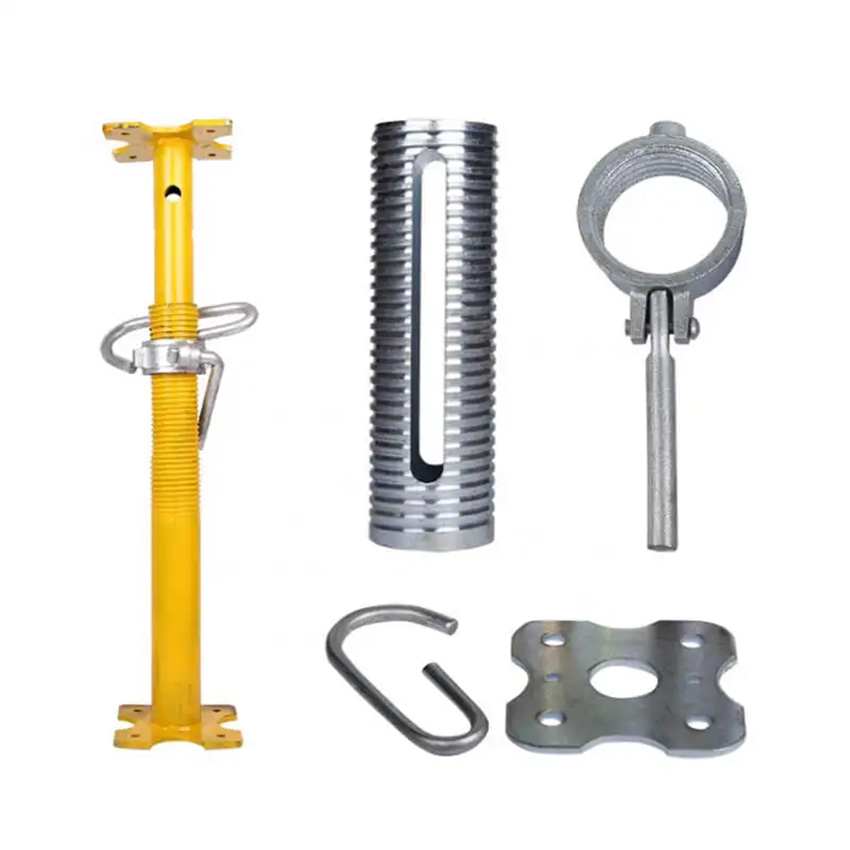

Top/Base Plate	Flower / Square
Pin Style	G Pin / Line Pin / Wire rod Pin
Nut and thread	Cup type or G-lock.
Loading quantity	1500-2000pcs/Container.
Materials	Q235B Steel Nut:QT450-10 or 20#.
Model	Middle east or German prop, Italian prop, Spanish prop, or customized

HEAVY DUTY PROP
MIN Length	MAX Length	INTERNAL TUBE	EXTERNAL TUBE
1.8M	3.2M	48MMX2.0MM	60MMX2.0MM
2.1M	3.4M	48MMX2.0MM	60MMX2.0MM
2.2M	4.0M	48MMX2.0MM	60MMX2.0MM
2.4M	3.9M	48MMX2.0MM	60MMX2.0MM
3.5M	4.0M	48MMX2.0MM	60MMX2.0MM
3.0M	5.0M	48MMX3.5MM	60MMX3.5MM
LIGHT DUTY PROP
MIN Length	MAX Length	INTERNAL TUBE	EXTERNAL TUBE
1.6M	3.0M	40MMX2.0MM	48MMX2.0MM
1.6M	3.0M	48MMX2.0MM	56MMX2.0MM
1.8M	3.5M	40MMX2.0MM	48MMX2.0MM
1.8M	3.5M	48MMX2.0MM	56MMX2.0MM
2.0M	3.5M	40MMX2.0MM	48MMX2.0MM
2.0M	3.5M	48MMX3.5MM	56MMX2.0MM

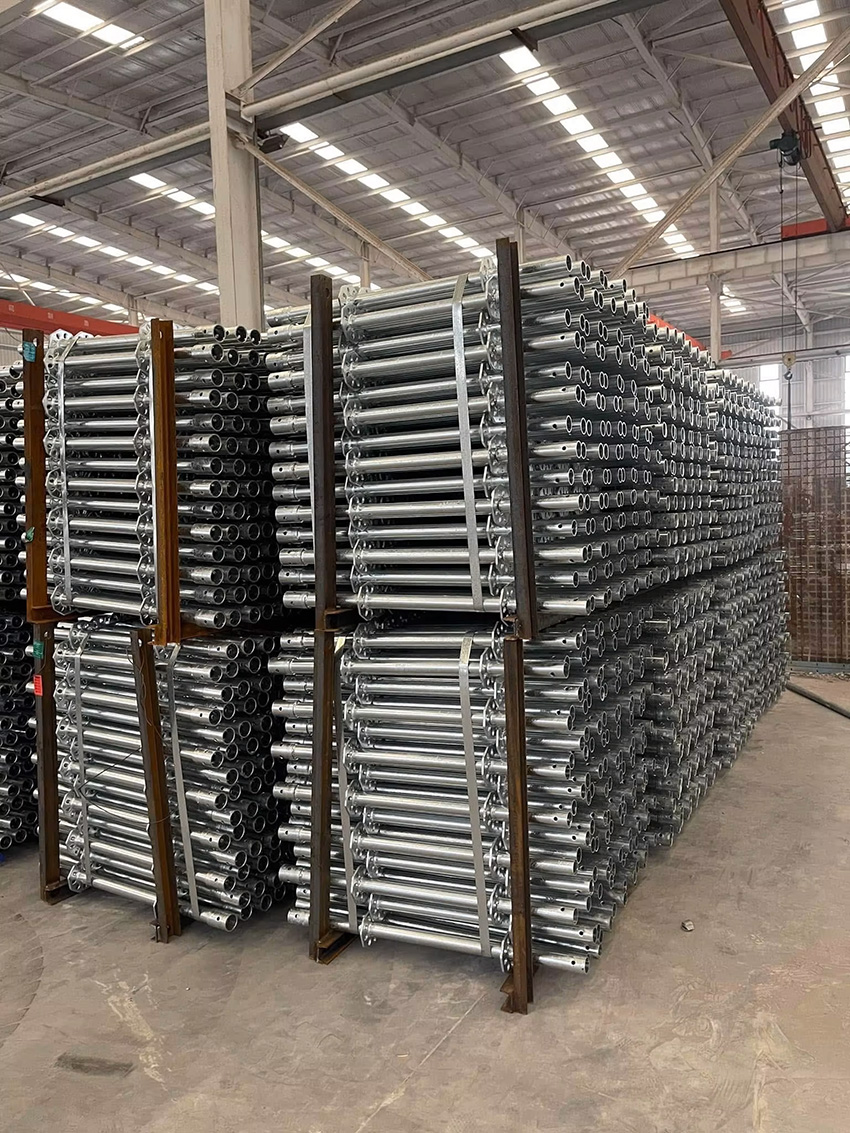

Kwikstage scaffolding

Item name	Length	Unit weight（kg）	Treatment	Measurements
Standard	500mm	3.40	Hot-dip Galvanization; Powder Coated	Φ48.3*3.2（mm）
	1000mm	5.90
	1500mm	8.50
	2000mm	11.10
	2500mm	13.50
	3000mm	16.00
Ledger	560mm	2.30	Hot-dip Galvanization; Powder Coated	Φ48.3*2.75(mm)
	760mm	3.20
	812mm	3.60
	1270mm	5.10
	1829mm	6.80
	2438mm	8.70
Diagonal Brace	1300mm	6.20	Hot-dip Galvanization; Powder Coated	Φ48.3*3(mm)
	1700mm	8.20
	2000mm	8.90
	2400mm	10.20
	2500mm	10.60
	2700mm	11.70
	2900mm	12.30
	3200mm	13.60
	3600mm	15.10
Tansom	500mm	4.50	Hot-dip Galvanization; Powder Coated	50*5.0 (mm)
	700mm	5.50
	800mm	5.70
	1000mm	9.20
	1200mm	9.50
	1800mm	16.70
	2400mm	23.70
Steel plank	700mm	5.00	Pre-galvanization	2301.563.5(mm)

Middle East Type/German Type adjustable steel props specification list
Modle		Adjustable Length		Outer Tube			Inner Tube		Wall Thickness
MSM-1427		1.4m-2.7m		60mm			48mm		1.5mm-3.0mm
MSM-1627		1.6m-2.7m		60mm			48mm
MSM-1832		1.8m-3.2m		60mm			48mm
MSM-2035		2.0m-3.5m		60mm			48mm
MSM-2134		2.1m-3.4m		60mm			48mm
MSM-2240		2.2m-4.0m		60mm			48mm
MSM-2439		2.4m-3.9m		60mm			48mm
MSM-3050		3.0m-5.0m		60mm			48mm
MSM-3055		3.0m-5.5m		60mm			48mm
Surface		Painted,powder coated,pre galvanized,electro galvanized,hot dip galvanize

Italian type adjustable steel props specification list
Modle		Adjustable Length			Outer Tube		Inner Tube		Wall Thickness
MSI-0814		0.8m-1.4m			56mm		48mm		1.5mm-3.0mm
MSI-1630		1.6m-3.0m			56mm		48mm
MSI-1831		1.8m-3.1m			56mm		48mm
MS\|-1835		1.8m-3.5m			56mm		48mm
MSI-2035		2.0m-3.5m			56mm		48mm
MSI-2036		2.0m-3.6m			56mm		48mm
MSI-2240		2.2m-4.0m			56mm		48mm
Surface		Painted,powder coated,pre galvanized,electro galvanized,hot dip galvanized

Spanish type adjustable steel props specification list
Modle	Adjustable Length		Outer Tube			Inner Tube		Wall Thickness
MSS-0814	0.8m-1.4m		48mm			40mm		1.5mm-3.0mm
MSS-1630	1.6m-3.0m		48mm			40mm
MSS-1835	1.8m-3.5m		48mm			40mm
MSS-2035	2.0m-3.5m		48mm			40mm
MSS-2240	2.2m-4.0m		48mm			40mm
Surface	Painted,powder coated,pre galvanized,electro galvanized,hot dip galvanized
